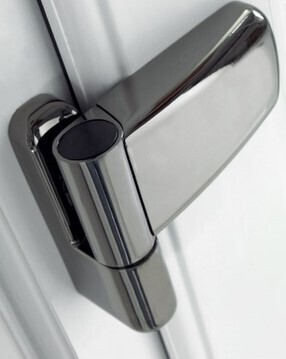

Mila iDeal Flag Hinge

•3 dimensional adjustment – vertical (+4mm), lateral (+/- 5mm) and fine tuning for compression (+/- 1mm) •Adjustment with 5mm Allen key achieved without removing door leaf from frame •Steel hinge pin for enhanced strength •Captive sash retaining screw for simple sash lid fitting •‘Lift-on, lift-off’ design for efficient on-site installation by one person •Positive location of the top cover cap and height adjustment packer further eases fabrication •4 over-rebate bushes to fit over-rebate heights 14 – 24mm – bushes are marked 14-20mm, 15-19mm,16-18mm and 17mm •Utilizes only 1 frame packer to alter over-rebate heights by a further 4mm, suiting a range of profile systems •‘Friction fit’ packer for ease of fabrication •Tested to exceed BS6375-2 requirements •Tested to 50,000 cycles underload •Exceeds 96 hours salt spray corrosion resistance requirements – plated finishes 240 hours, powder coated finishes 480 hours •Maximum sash weight 80kg with (2 hinges)
