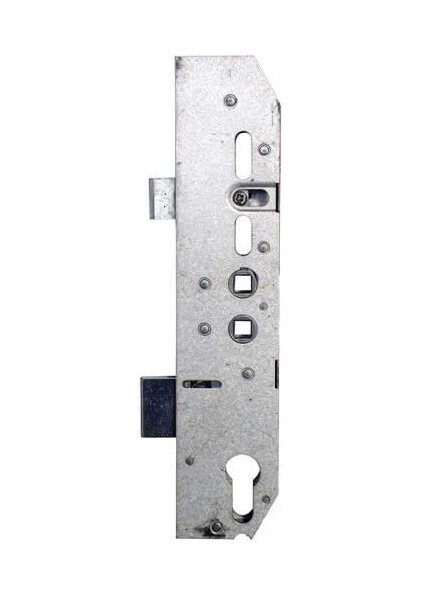

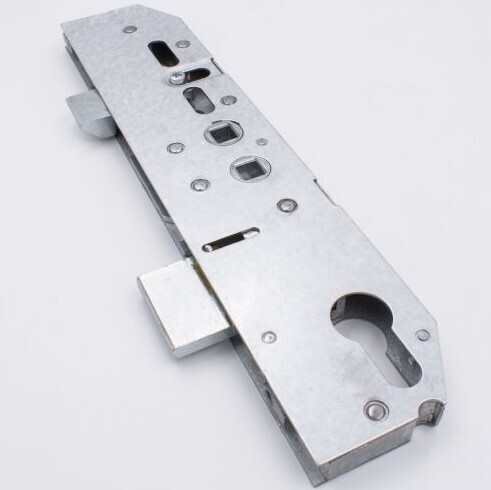

Mila Copy Gearbox – Latch and Deadbolt – Lift Lever or Double Spindle

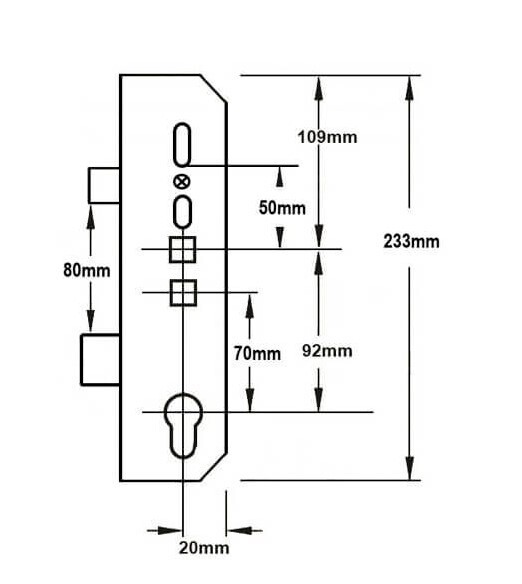

35mm backset only This Mila copy gearbox has a latch and deadbolt with a double 8mm spindle. Also known as Coldseal and Swiftlocks. M4 x 10mm self-tapping machine screws need to be used with this lock as screw holes are unthreaded. The connectors for this lock sit over offset to one side, there are variations that feature central inline connectors, if you are replacing a central inline version adjustments will need to be made. Operation: Lift lever or double spindle Latch reversal: Undo the screw in the side of the lock case to remove the latch, reverse, reinsert and replace the screw.
