GU 4 Roller

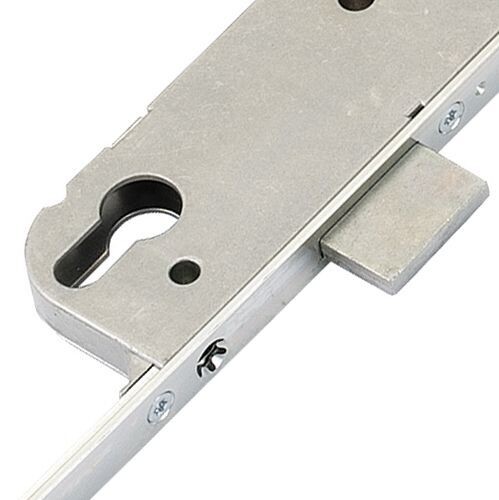

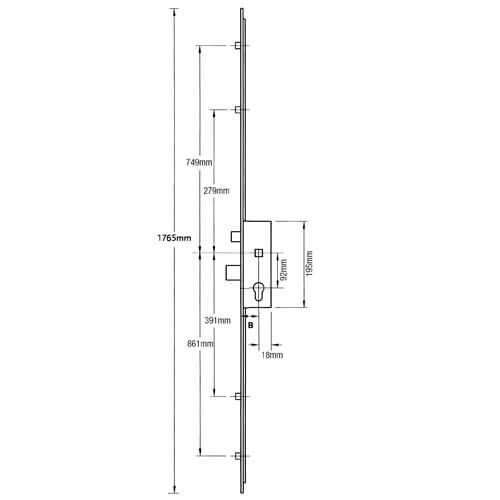

Product Information: A shorter (1765mm long) version of the ubiquitous 4 roller lock from GU at a cheaper price. Backset: 35mm Centres: 92mm Operation: Lift lever. Latch reversal: Push a flat bladed screwdriver into the small rectangular slot above spindle and pull out latch at same time. reverse and reinsert – for solid spindle lock case only 3mm Allen key for latch reversal & 3mm Allen key to rear of lock case to reverse latch function – for split spindle lock case SPECIFICATIONS Centres: 92mm Case height: 195mm Case depth: Backset + 18mm Overall length: 1765mm Distance between outer rollers: 1610mm Distance between inner rollers: 670mm
