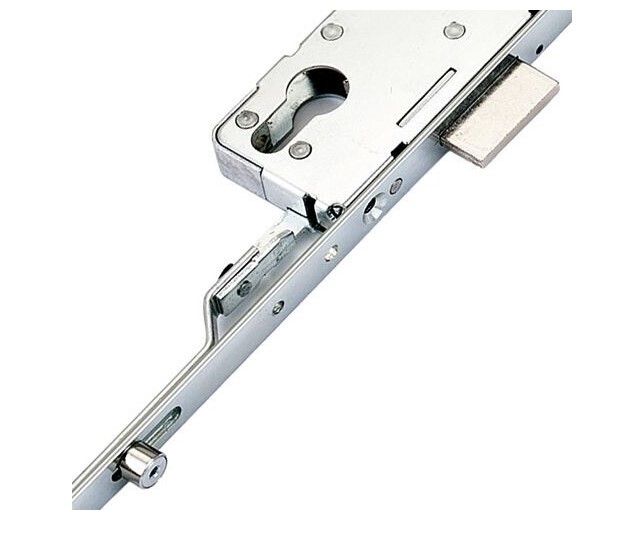

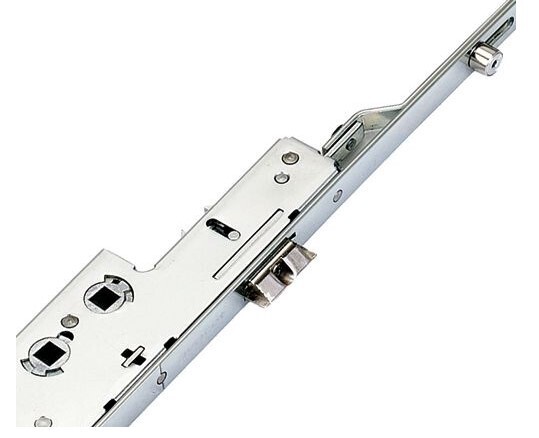

Avocet Latch Deadbolt 4 Rollers Double Spindle Multipoint Door Lock

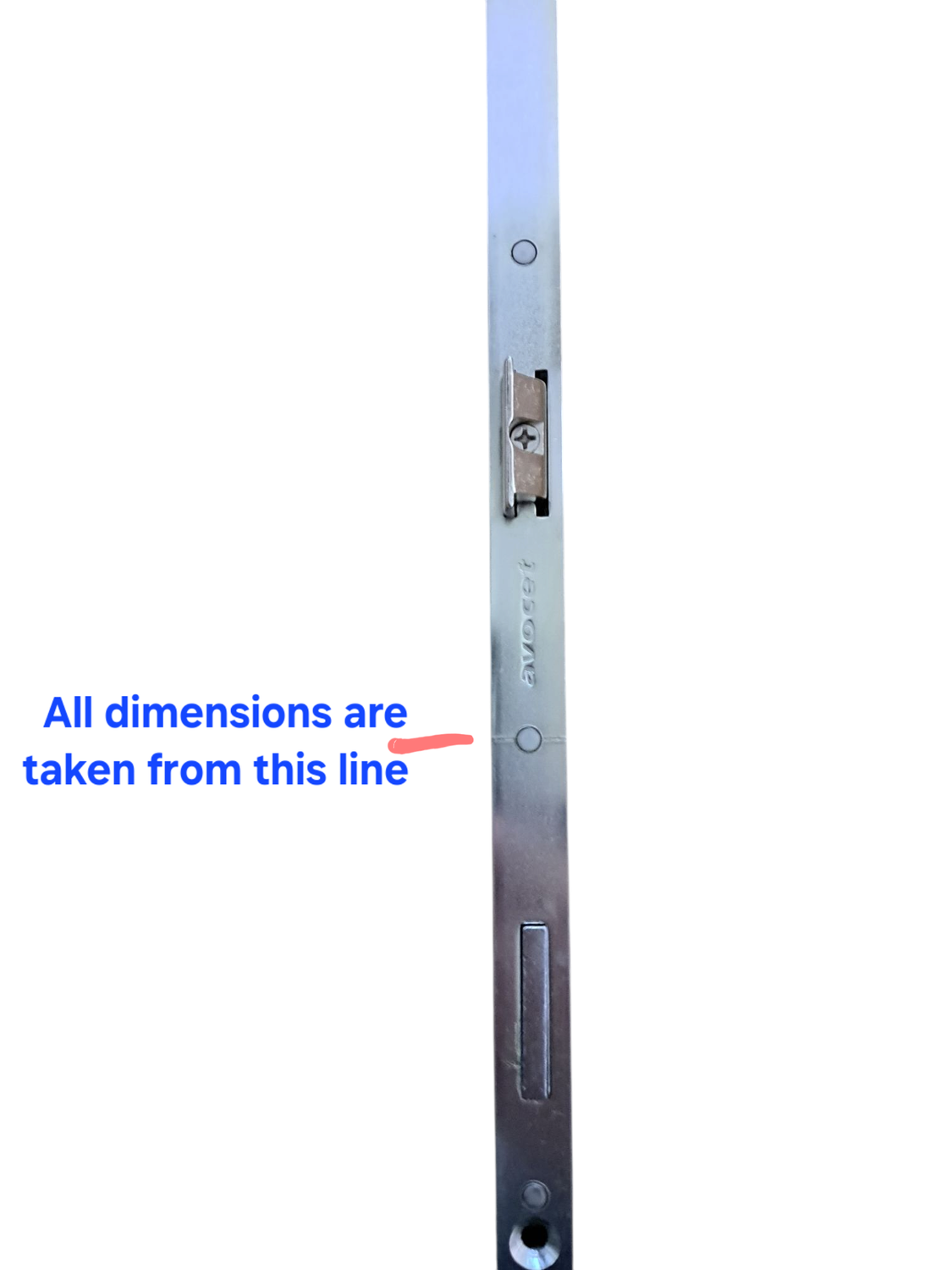

Centres: 92mm/62mm Case height: 218mm Overall length: 2200mm Distance between inboard rollers: 385mm Distance between outboard rollers: 1575mm 35mm backset only All measurements are taken from engraved line below tongue latch ( as per photo ) Line up to 1st roller 183mm Line up to 2nd roller 776mm Line down to 1st roller 200mm Line down to 2nd roller 796mm
